Which RS232 data logger should I choose for long-term monitoring?

Serial Communication
1

I need help picking a reliable RS232 data logger for long-term monitoring of serial data from some older lab equipment. I’m logging continuous readings, need stable timestamps, and want to export the data easily to CSV for analysis. I’m unsure which brands or models are dependable and which features actually matter for this kind of setup, like isolation, buffer size, or built-in memory. What RS232 data loggers are you using that have proven stable and easy to work with, and what should I avoid?

2

For long term RS232 logging from older lab gear, I’d focus on three things first: reliability, timestamp quality, and export workflow.

  1. Hardware vs PC based logger
    If you want “set and forget” for months, use a hardware RS232 data logger with internal memory and RTC.
    If you already have a stable PC that runs 24/7 on a UPS, a software logger is cheaper and more flexible.

Hardware options people use in labs

  • Brainboxes ES / US series
    Stable, decent timestamping, industrial build. Stores to internal memory, then you pull logs over Ethernet or USB.
  • ICP DAS data loggers
    More I/O focused, but some units handle RS232 logging well. Good if you need multiple channels from different instruments.
  • Lascar EL-USB style loggers with RS232 adapters
    Simple, but you end up juggling adapters and software. Works fine for low speed data.

PC based approach
If a PC stays on anyway, I’d go with a dedicated RS232 logging app and a quality USB to RS232 adapter (FTDI chip, not the cheap no-name stuff).
Set Windows power options so it never sleeps. Sync system time to an NTP server, that gives you stable timestamps if you log for months.

For software, something like Serial Port Monitor is worth a look. It taps the COM port, logs binary or text, and exports to CSV without drama. You get live view, filters, and timestamps that stay consistent with your system clock. That helps a lot when you need to correlate instrument readings with other lab data later.

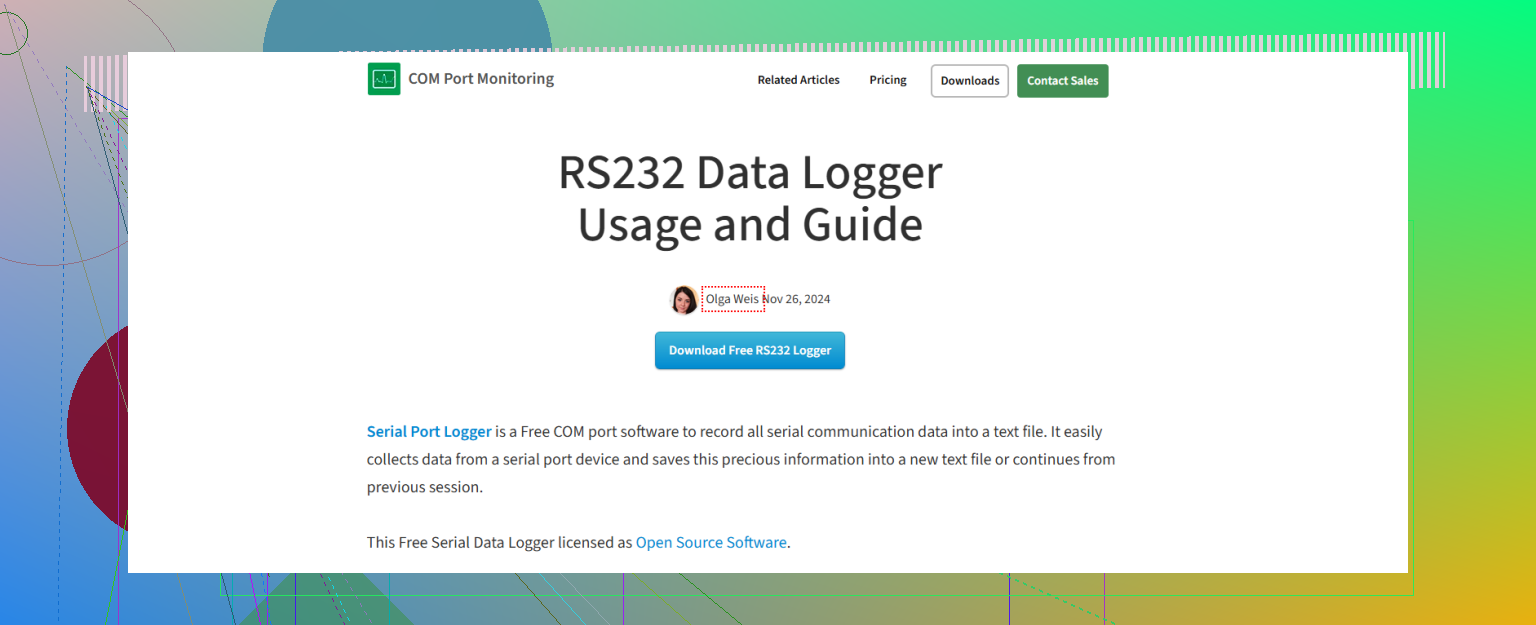

If you want a more complete RS232 data logger guide with examples, config tips, and screenshots, this page is good:
practical RS232 data logging guide
It walks through setting baud rate, parity, log format, and how to structure CSV output so you can feed it straight into Excel or Python.

Concrete setup I’d recomend for your case

  • One PC close to the instruments, on a UPS, Ethernet if possible.
  • FTDI based USB to RS232 adapters, one per instrument.
  • Serial Port Monitor installed, one logging session per port, each writing to its own rolling log file in CSV format.
  • Time sync via NTP on the PC.
  • Daily or weekly scheduled backup of the log folder to a NAS or external drive.

Timestamp stability tips

  • Avoid laptops on battery for long runs, some drift more and enter weird power states.
  • Set Windows to use a single time source and resync often.
  • Log timestamps from the software, not the instrument text stream, unless your device outputs its own precise time.

If you need standalone, no PC, I’d look at Brainboxes or ICP DAS units first. For anything where you want flexibility, quick CSV export, and protocol analysis, a PC with Serial Port Monitor is usually easier to live with.

Watch out for

  • Cheap RS232 loggers with no NTP support and poor RTC. Clock drift ruins long term data.
  • Software loggers that write huge single files without rotation. Use daily log files so they stay manageable and do not corrupt everything on a crash.
  • Baud mismatch or flow control issues. Set baud, data bits, parity, stop bits to match the lab gear exactly, and normally use no flow control unless your manual says RTS/CTS.
1 Like
3

If your main requirements are continuous logging, solid timestamps, and painless CSV export, you basically have three realistic paths, and I don’t fully agree with @ombrasilente on prioritizing hardware first.

1. Dedicated PC + good USB–RS232 + proper logger software

For most labs this is the sweet spot:

  • Small desktop PC on a UPS, Ethernet, time synced via NTP.
  • FTDI‑based USB–RS232 adapters only. Avoid the bargain-bin adapters; they randomly drop bytes under load.
  • Use something like Serial Port Monitor as the core logger. It’s actually built for long-term serial sniffing, not just quick tests.

Where I differ a bit from @ombrasilente:
They lean on the hardware loggers first. In my experience, unless your environment is really hostile or you have zero IT support, a PC + Serial Port Monitor is easier to maintain and more flexible for analysis and CSV workflows.

With Serial Port Monitor you can:

  • Log each COM port to its own file.
  • Store data directly as CSV or text, with timestamps added by the software.
  • Watch traffic live so you can immediately see if the instrument is misbehaving.
  • Use file rotation so a crash does not nuke a 50 GB log.

If you want to try it, look at
download Serial Port Monitor for reliable RS232 logging
This RS232 logging tool focuses on stable capture, flexible filters, and easy export formats that open cleanly in Excel or Python, which is exactly what you want for long-term lab monitoring.

2. Hardware datalogger only if you truly need standalone

I’d flip the decision logic a bit:

  • If your instruments are in a hard-to-access place, power is spotty, or IT refuses to allow another PC on the network, then a Brainboxes / ICP DAS type box makes sense.
  • If your gear is in a normal lab, already with PCs everywhere, a hardware logger is usually more pain to configure and less transparent to debug.

Big watch-out with standalone units: a lot of them have mediocre RTCs. Even “industrial” ones can drift tens of seconds per month. Over a year that’s a mess for correlation. Unless the device supports NTP or GPS time, I’d be very suspicious of “multi-year logging” claims.

3. A few practical choices based on what you described

If you have:

  • 1–4 instruments, continuous readings, near a PC:

    • Go PC-based.
    • One FTDI RS232 adapter per instrument.
    • Serial Port Monitor logging to CSV with daily files.
    • Turn off system sleep, keep the clock syncing.

  • Many instruments or you need isolation:

    • Multiport serial PCIe card or multiport USB hub with FTDI adapters, still PC-based.
    • Or a mix: one industrial RS232-over-Ethernet box feeding the PC, logged with the same software.

  • Truly remote / no PC allowed:

    • Then yeah, something like the Brainboxes unit @ombrasilente mentioned is sane, but I’d test clock drift over a week before trusting it for a year-long study.

Timestamp stability tips that ppl often skip

  • Don’t assume the lab PC is set up right. Check:
    • Time sync service actually running and talking to a real NTP server.
    • No “auto time” trash from vendor utilities meddling with the clock.
  • Use the logger’s timestamps, not the instrument’s text timestamps, unless you have a good reason. Instrument clocks are often worse than Windows + NTP.
  • Log in local time and UTC if your analysis is long-term or multi-site. Future‑you will thank current‑you.

CSV export specifics

For easy downstream analysis:

  • Use one record per line, with a fixed field order like:
    YYYY-MM-DD,HH:MM:SS.sss,DeviceID,RawString
  • Avoid commas inside the payload unless you wrap fields in quotes. Otherwise Excel / pandas parsing turns into misery.
  • Roll files daily so you can archive / back them up without touching the live file.

Putting it all together:

Given your description, I’d absolutely start with a PC-based setup and Serial Port Monitor as the main logging engine. Hardware loggers are fine, but for continuous monitoring, stable timestamps, and easy CSV export, they’re often more restrictive than people realize.

Which RS232 data logger should I choose for long-term monitoring?
Which RS232 data logger should I choose for long-term monitoring?1536×625 150 KB

4

Short version: your choice is less about “which RS232 logger box” and more about how much you trust a PC to sit there quietly for months.

Where I partly disagree with @ombrasilente and the follow‑up: hardware loggers are nice, but for lab gear that is indoors, powered, and somewhat supervised, a software logger is not just “good enough”; it is usually the most transparent and debuggable solution.

Here is how I would frame it around Serial Port Monitor plus alternatives, without rehashing their steps.

1. When a PC + Serial Port Monitor actually wins

Use a PC as the logger when:

  • Instruments are in the same room or rack.
  • You care about tight time correlation to other systems.
  • You want to inspect traffic while logging.

Pros of Serial Port Monitor for your use case

  • Very stable capture on long runs if the PC itself is stable.
  • Fine‑grained timestamps added on arrival, which is often more reliable than the instrument’s own clock.
  • Direct logging to CSV or text, so you avoid dumping a proprietary binary format later.
  • Can handle multiple COM ports at once with separate or combined logs, which is nice if you expand from “a couple of devices” to a small RS232 zoo.
  • Filters and views that let you sanity check parsing or protocol quirks in real time, instead of discovering garbage data three months later.

Cons you should factor in

  • You are now maintaining a PC for the lifetime of your experiment: OS updates, disk health, no sleep mode, etc.
  • Licensing cost exists and may not scale as gracefully as totally free tools if you end up with lots of logger PCs.
  • It is Windows focused, so if you are a Linux‑only shop, you either add a Windows node or look elsewhere.
  • It is not bulletproof against “admin touches it and reboots during a long run,” which dedicated black‑box hardware tends to discourage.

For a typical lab, those tradeoffs are usually acceptable, especially if timestamps and CSV export are top priorities.

2. Where I actually side more with hardware

This is where I am closer to @ombrasilente’s angle:

  • No one will babysit the system.
  • You have flaky power or frequent reboots.
  • Compliance / IT policy hates arbitrary Windows boxes gathering data.

In those niches, an industrial RS232 logger with its own flash and watchdog can be worth the pain, even if its timekeeping is not stellar. Here I would still:

  • Demand NTP or GPS sync if you care about cross‑system correlation.
  • Run a week‑long drift test by logging the same source on both the hardware box and a PC and comparing timestamps.
  • Check that exporting to CSV or at least plain text is a one‑click action, not an after‑thought buried in vendor utilities.

3. A more nuanced take on timestamps

Something many people gloss over:

  • PC + Serial Port Monitor gives you “receive time at the OS” which is usually within a few ms if the PC is not overloaded.
  • Hardware loggers often have more jittery sampling due to internal buffering, even when the RTC itself is stable.
  • Instrument timestamps, if present, are rarely NTP synced and often drift faster than a Windows PC.

For long term studies, I would:

  • Use the logger’s PC timestamps as primary.
  • Optionally record the instrument’s own stamped values as an additional column for sanity checks.
  • Maintain NTP on the PC and capture UTC plus local time in the CSV so later analysis does not depend on guesswork about time zones or daylight changes.

4. Alternative paths you could consider

If you dislike the idea of a single “big” logger application, alternatives are:

  • Small custom script (Python, C#, etc.) that just reads the COM port and writes timestamp, raw_line to CSV.
  • A multiport PCIe serial card instead of many adapters if you care about electrical robustness and long cable runs.
  • Using one of the hardware RS232‑to‑TCP bridges as a pre‑stage, then still recording on a PC, which lets you physically separate noisy lab gear from the logger box.

Where Serial Port Monitor still has an edge over a small homebrew script is protocol inspection and troubleshooting. In a lab with changing equipment and unknown serial formats, the ability to poke around the stream interactively is a huge time saver.

5. Concrete recommendation for your scenario

Given:

  • Older lab equipment, continuous readings.
  • Need for stable timestamps.
  • Need to export to CSV easily.

I would:

  1. Dedicate a small PC to the task, time synced.
  2. Use high quality FTDI‑based RS232 adapters.
  3. Run Serial Port Monitor for logging and inspection, with rotation to daily CSV files.
  4. Only fall back to a hardware data logger if physical constraints or IT policy rule out that PC.

This complements what @ombrasilente and the later post suggested: I am more willing than they are to stick with software long term, as long as you treat the PC as part of the scientific instrument and lock down its configuration.
